Portable Advertising LED Displays P3.91 P4.81 P6.25 environment friendly

Name: Portable Advertising LED Displays P391 P481 P625 environment friendly
Brand: Shenzhen LED World
Price: 1 USD

China Portable Advertising LED Displays P3.91 P4.81 P6.25 environment friendly wholesale

Brand Name : Shenzhen LED World

Model Number : LW-RI4.81

Certification : CE,RoHS,FCC

Place of Origin : China

MOQ : 1 square meter

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 3,000 square meters per month

Delivery Time : 15-20 working days after received your payment

Packaging Details : Carton/Plywood case etc.

Pixel resolution : 52dots(W)*52 dots(H)

Port type : HUB75-A

Pixel per cabinet : 104*104

Thickness : 65mm

Operation system : WIN98/2000/NT/XP/WIN7

Power switch : Automatic switch

Refresh frequency : ≥1,200HZ

Working voltage : AC110~220V±10%

Contact Now

Portable Advertising LED Displays P3.91 P4.81 P6.25 environment friendly

Features:

Indoor and outdoor Full color led project screen.
Angle adjustment
Using angle adjustment structure, panels could be assembled into different shape like convex and concave, the angle range is ±15° .
This cabinet can be used both outdoors and indoors;
P4.8 and P6.25 can be used both outdoors and indoors;
Outward appearance fashion: 500 mm * 1000 mm of cabinet design ideal, freedom, wire layout elegant appearance;
The screen could be hung up for different kinds of event.And it also could be put on the floor as dance floor;
The LED screen size can be exactly : 4*3m ,6*4m,9*5m etc .easy to get 4:3 ,16:9 ratio ;
Be distinguished by its design, P3.9 Indoor event audio visual equipment LED video walls are consisted to be the best event production on the market.

Application:

Our indoor ture color LED screen are widely used in auto Parts and Maintenance shops,elevator,stage,golf course,theme parks,pedestrian streets,factories,night club,concert and so on .

Parameter:

Unit Module	Item	Parameter
	Model Number	LW-P4.81
	Module size	250mm*250mm
	Pixel pitch	4.81mm
	Pixels Density	43264/m2
	Pixel configuration	1R1G1B
	LED Package mode	SMD2121
	Pixel resolution	52dots(W)*52 dots(H)
	Max Power	32W
	Module thickness	14.66mm
	Module thickness	26.55mm
	Weight	0.575kg
	Drive type	Constant drive
	Scan mode	1/13scan
	Port type	HUB75-A
	Brightness of white balance	≥1,200cd/m2
LED Cabinet	Dimension	500mm*500mm
	Monomer Module Number	4
	Power supply	5V/40A*1pcs
	Thermal discharge	fan 1pcs
	Pixel per cabinet	104*104
	Best viewing distance	5M~20M
	Best viewing angle	160°(W) 120°(H)
	Temperature	storage:-35ºC~+85ºC
	Temperature	working:-20ºC~+50ºC
	Relative humidity	10%-95%
	Thickness	65mm
Power	Working voltage	AC110~220V±10%
	Average Power consumption	168W/m2
	Max.Power consumption	≤560W/m2
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥1,200HZ
	Grey scale/colors	4,096gray level/16.7M colors
	MTBF	≥9,000hours
	Power switch	Automatic switch
	Display Mode	≥800600/1024768
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

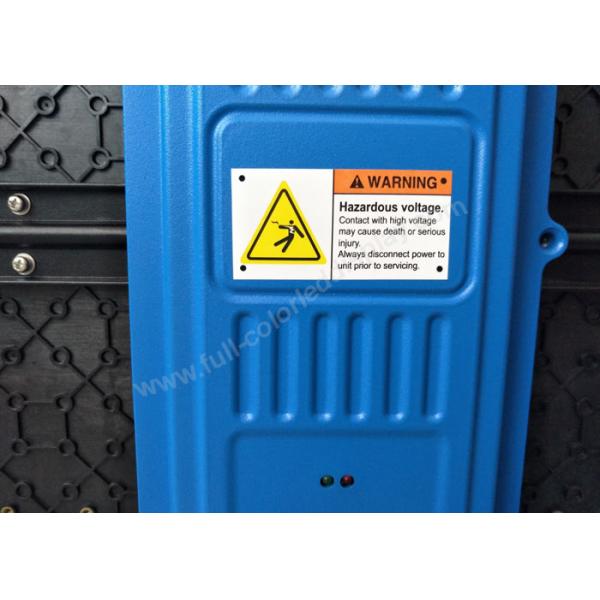

Product detail:

Portable Advertising LED Displays P3.91 P4.81 P6.25 environment friendly
